Blenheim Brass

Glass Fronted Gas Fire

Blenheim Brass

Glass Fronted Gas Fire

ERP Product Data Sheet

  • 3 Year Guarantee
  • 4.1kW Direct Output
  • Glass Fronted – High Efficiency

The Blenheim glass fronted inset gas fire designed to fit multiple flue installations. It is compatible with most pre-cast flues, pre-fabricated flue systems (class 1 or class 2 with min. 127mm / 5″ diameter or greater) and conventional class 1 brick built chimneys. The multi-flue firebox fits a standard fireplace opening, typically 16″ wide x 22″ high (please refer to specification – excludes low lintels) and requires a minimum fireplace depth of only 125mm, plus 20mm for debris collection.

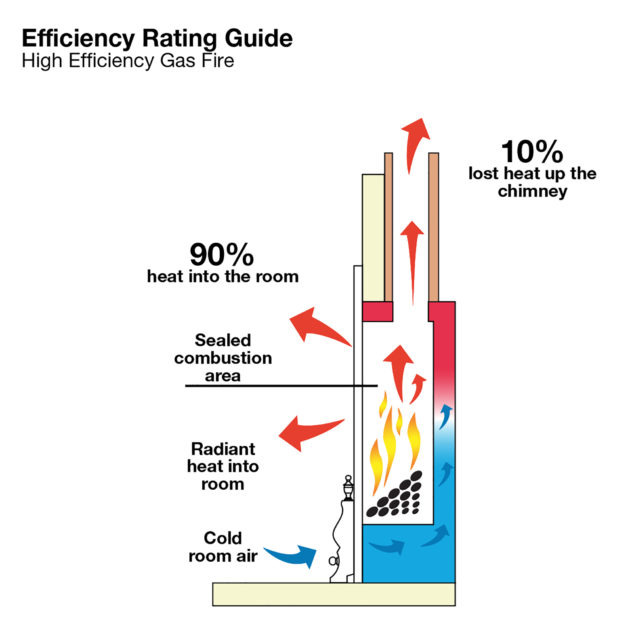

The discrete glass front helps increase efficiency by reducing the amount of heat input required while the patented safety draft diverter system increases safety in the event of a flue draft reversal.

The Blenheim glass fronted can be specified in Manual Control (Rotary) or Manual (Fingerslide) and is available with coal fuel bed only.

The Blenheim fret is a classic traditional cast design with ornate vertical bars and delicate form. It features a bowed profile with two decorative finials and is designed to free stand in front of the fire and frame. The Blenheim fret and ashpan is available in: brass (solid brass), brass & black (solid brass), chrome (chrome plated brass), chrome & black (lightweight aluminium), black (lightweight aluminium). The frame is held in position with magnets (supplied) and is available in either: brass effect, chrome effect or black (model dependent).

This product is not suitable for primary heating

Model Identifier High Efficiency (Glass Fronted) Inset Fuel Effect Gas Fire Gas Category/Pressure = I2H(20)
Heat Input Gross (High) 5.0kW
Heat Input Gross (Low) 3.5kW
Heat Output Gross (High) 4.1kW
Heat Output Gross (Low) 2.8kW
Energy Efficiency Class C
Direct Heat Output 4.1kW
Heat Type Radiant & Convected Heat
Chimney Flue Compatibility Pre-Cast (Minimum Size 12,500mm²), Pre-Fabricated - Class 2 (127mm/5" Diameter), Conventional Chimney - Class 1 (178mm/7" Diameter or Greater)
Control Ignition Battery-Free Piezo Spark Ignition (Manual - Rotary Control), Battery Spark Ignition (Manual - Fingerslide Control)
Control Location Low Level - Front - Behind Ash Pan (Manual - Rotary Control), High Level - Right - Side (Manual - Fingerslide Control)
Air Vent Required Not Required
Manufacturer Guarantee 3 Years
Safety Features Flame & Oxygen Monitoring Device
Installation Requirement Gas Safe Registered Installer (Bord Gais - ROI)
Installation Information As with any open fire, a fire guard complying with BS 8423 must be used. Fire guards are intended to protect people from falling into a fire, prevent burns and reduce the risk of injury, particularly to young children and the infirm. In addition it is intended to reduce the risk of fire resulting from clothing and/or other flammable materials coming into contact with, or in proximity to, burning fuel and/or hot surfaces.
Fuel Type Natural Gas
Fire Type Glass Fronted
Installation Type Inset

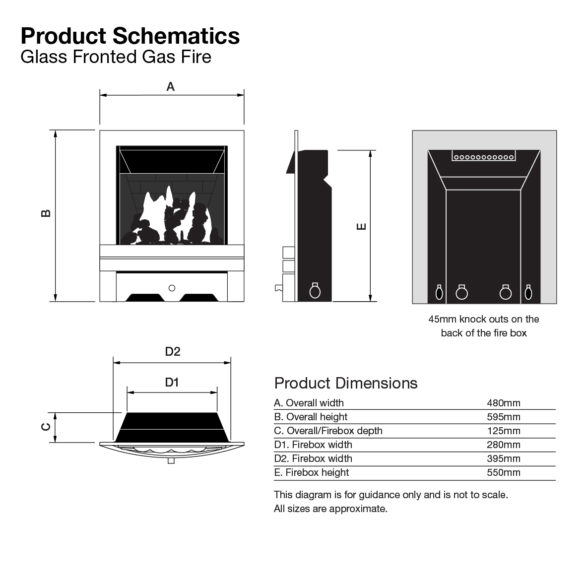

Product Width A 480mm
Product Height B 595mm
Product Depth C 125mm
Firebox Width D1 280mm
Firebox Width D2 395mm
Firebox Height E 550mm
Fireplace Opening Width Min 390mm
Fireplace Opening Width Max 450mm
Fireplace Opening Height Min 550mm
Fireplace Opening Height Max 575mm
Fireplace Opening Depth 145mm
